Description:

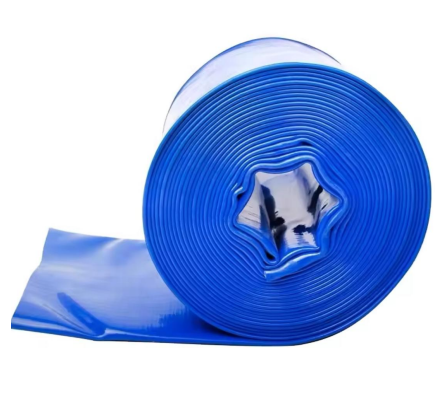

PVC Layflat hose is a tough water discharge hoses made with a PVC cover and reinforced polyester yarn, The high tensile polyester yarn provides great durability and strength in all working situations. It is highly durable while maintaining graet flexibility and best suited for low--medium pressure applications.
Application:
PVC layflat hose is designed for ligh and heavy duty applications, the hoses are most commonly used in agricultural equipment where continuous water flow through irrigation systems is required. Additional uses include water pump, pool & spa,construction, mines and marine.
Product Parameters
I.D. | W.P.(MAX) | B.P.(MAX) | UNIT LENGTH | |
in. | mm | BAR | BAR | m/roll |
3/4 | 19.1 | 10 | 30 | 100 |
1 | 25.4 | 10 | 30 | 100 |
1 1/4 | 31.8 | 10 | 30 | 100 |
1 1/2 | 38.1 | 10 | 30 | 100 |
2 | 50.8 | 10 | 30 | 100 |
3 | 75.0 | 10 | 30 | 100 |
4 | 102.0 | 10 | 30 | 100 |
6 | 152.0 | 10 | 30 | 100 |
8 | 200.0 | 10 | 30 | 100 |
10 | 254.0 | 4 | 12 | 100 |
12 | 305.0 | 4 | 12 | 100 |
Description:
PVC Layflat hose is a tough water discharge hoses made with a PVC cover and reinforced polyester yarn, The high tensile polyester yarn provides great durability and strength in all working situations. It is highly durable while maintaining graet flexibility and best suited for low--medium pressure applications.
Application:
PVC layflat hose is designed for ligh and heavy duty applications, the hoses are most commonly used in agricultural equipment where continuous water flow through irrigation systems is required. Additional uses include water pump, pool & spa,construction, mines and marine.
Product Parameters
I.D. | W.P.(MAX) | B.P.(MAX) | UNIT LENGTH | |
in. | mm | BAR | BAR | m/roll |
3/4 | 19.1 | 10 | 30 | 100 |
1 | 25.4 | 10 | 30 | 100 |
1 1/4 | 31.8 | 10 | 30 | 100 |
1 1/2 | 38.1 | 10 | 30 | 100 |
2 | 50.8 | 10 | 30 | 100 |
3 | 75.0 | 10 | 30 | 100 |
4 | 102.0 | 10 | 30 | 100 |
6 | 152.0 | 10 | 30 | 100 |
8 | 200.0 | 10 | 30 | 100 |
10 | 254.0 | 4 | 12 | 100 |
12 | 305.0 | 4 | 12 | 100 |
