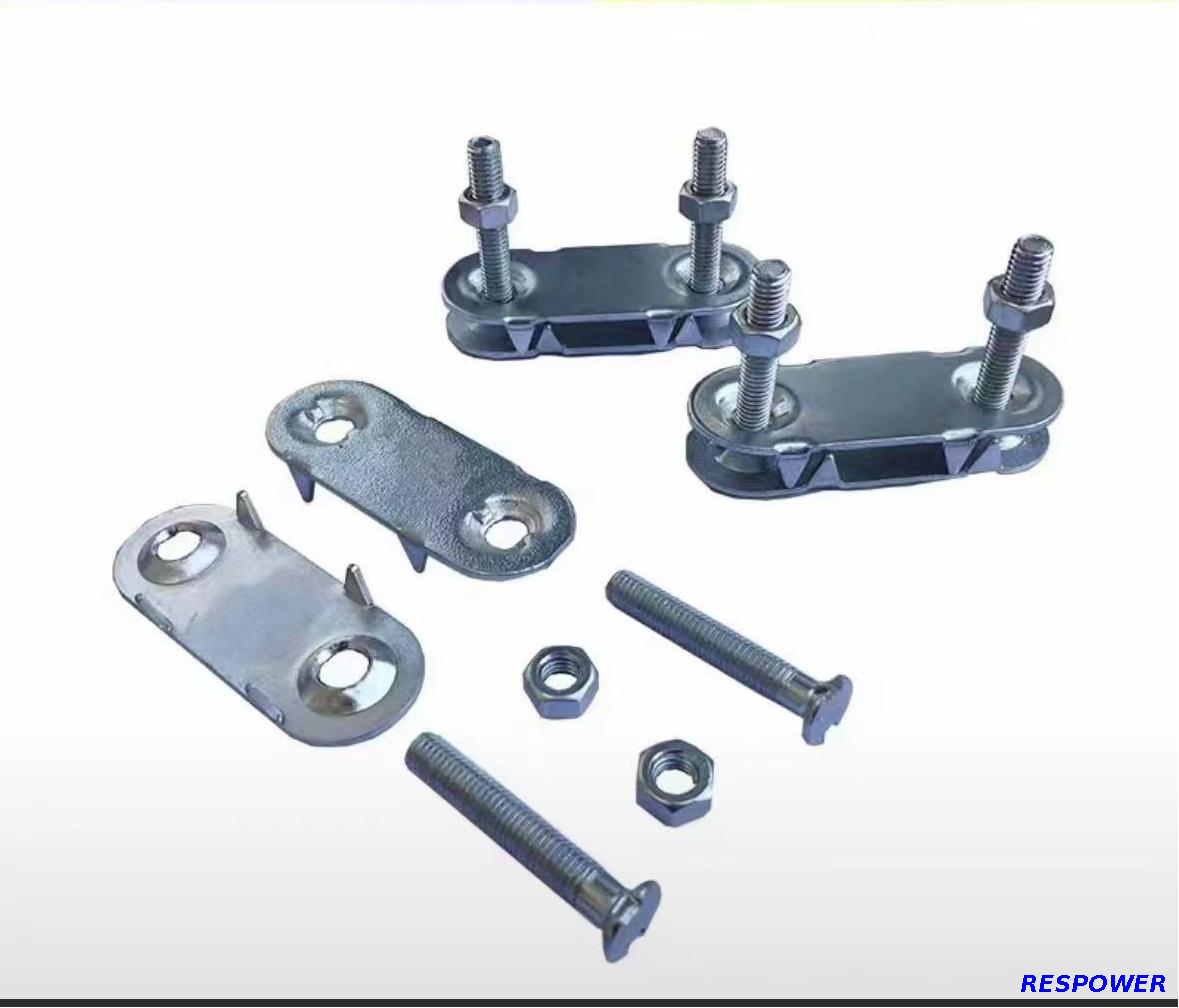

Belt fastener is a mechanical belt joint and rapidly connect the break part of the conveyor belt or two joints. Belt fastener is made by galvanized steel so with good anti-corrosion and strength. Blet fastener can be easily operate by the matched wrench tools. Just one person can finish installment.
Advantage:Flexible: Belt fastener installment very quickly. Can install any width as your belt size.
Stainless: Belt fastener material is stainless with galvanized cover, which will keep longer service life.
Stable: Operation technology is stable and reliable. Your workers can easily install it although
without professional training. And belt fastener quality is more stable than hot and cold vulcanizing.
Various Model: Different models suitable for various belt size and type Custome: Can customize for you as your special situations.
HEAVY-DUTY BELT FASTENER TYPES
In heavy-duty applications like coal, cement, mining, and aggregate, there are two main belt fastener types: Hinged Plate and Solid Plate. Hinged plate fasteners, often used with small pulleys, are installed into each end of the belt and then joined together and held in place with a pin. Solid plate fasteners consist of one plate that is installed into both ends of the belt and fastened together. Solid plate fasteners are used with larger pulleys and for applications that require a sift-free splice. These fasteners are installed into the belt using bolts, rivets, or staples (depending on belt type and application) and are available in
a variety of metals .
LIGHT-DUTY BELT FASTENER TYPES
In light-duty applications like agriculture, parcel handling, food, and laundry,
fasteners are available in hook and lacing styles, are installed into both ends of the belt, and are joined together with a hinge pin. Installation methods vary
from machine application to using hand tools, and the fasteners are available in a variety of metals, plastics, and in some cases, food-grade
materials.Choosing the proper mechanical belt fastening system is one of the most
important steps in splicing a belt.Use the filters at the left to refine your results and find the mechanical belt fastening system that is best suited to your application.
1. Size: As you're required
2. Standards: DIN/JIS and NON-STANDARD
3. Material: Zinc plated steel, Black oil steel
4. Surface treatment: Plain/blackened by oil/electric galvanized
5. Size: Accommodates belt from 3/16"(5mm) to over 15/16"(24mm) thick...
| Model | Belt Thickness Range | Strength | Minimum Pulley Diameter | Diamet Special tool specs |
| inch | mm | Pounds/square feet | KN/m | inch | mm |
|
| 1" | 3/16 ---- 7/16 | 5 --- 11 | 150 | 30 | 12 | 300 | A |
| 140E | 3/16 ---- 7/16 | 5 --- 11 | 225 | 40 | 14 | 360 | A |
| 190E | 5/16 ---- 9/16 | 8 --- 14 | 375 | 65 | 18 | 460 | A |
| 1.5" | 7/16 ---- 11/16 | 11 --- 17 | 300 | 50 | 18 | 460 | B |
| 2" | 9/16 ---- 13/16 | 14 --- 21 | 440 | 75 | 30 | 760 | B |
| 2.5" | 3/4 ---- 1 | 19 --- 25 | 450 | 75 | 42 | 1070 | C |
| 3.0" | 1/16and more | 24 and more | 560 | 100 | 48 | 1200 | C |
| Size | Length of plate/mm | Width of plate/mm | Distance of holes/mm | Bolt sizes/mm | Apply belt thickness/mm | Belt strength | Pulley size/mm |
| 140E | 57 | 21 | 36 | 6x42 | 5-11 | 400N/mm | 400-600 |
| 190E | 67 | 21 | 48 | 6x42 | 8-14 | 500N/mm | 610-760 |
| 1.5" | 63 | 27 | 41 | 8x45 | 11-17 | 500N/mm | 610-760 |
| 2" | 83 | 29 | 54 | 8x45 | 14-21 | 750N/mm | 640-760 |
| 2.5" | 102 | 38 | 64 | 10x59 | 19-25 | 800N/mm | 1070 |
| 3.0" | 114 | 38 | 77 | 10x59 | ≥24 | 2000N/mm | 1200 |
