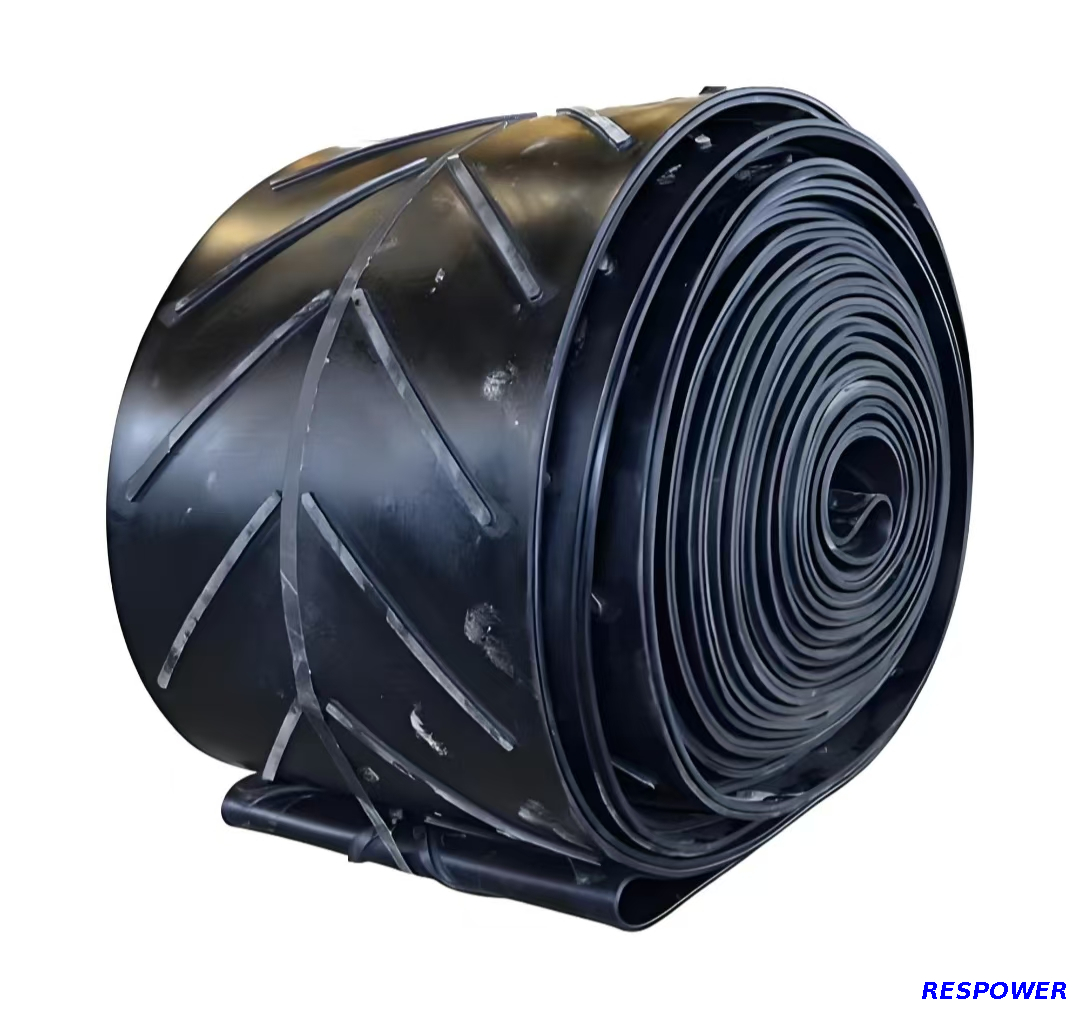

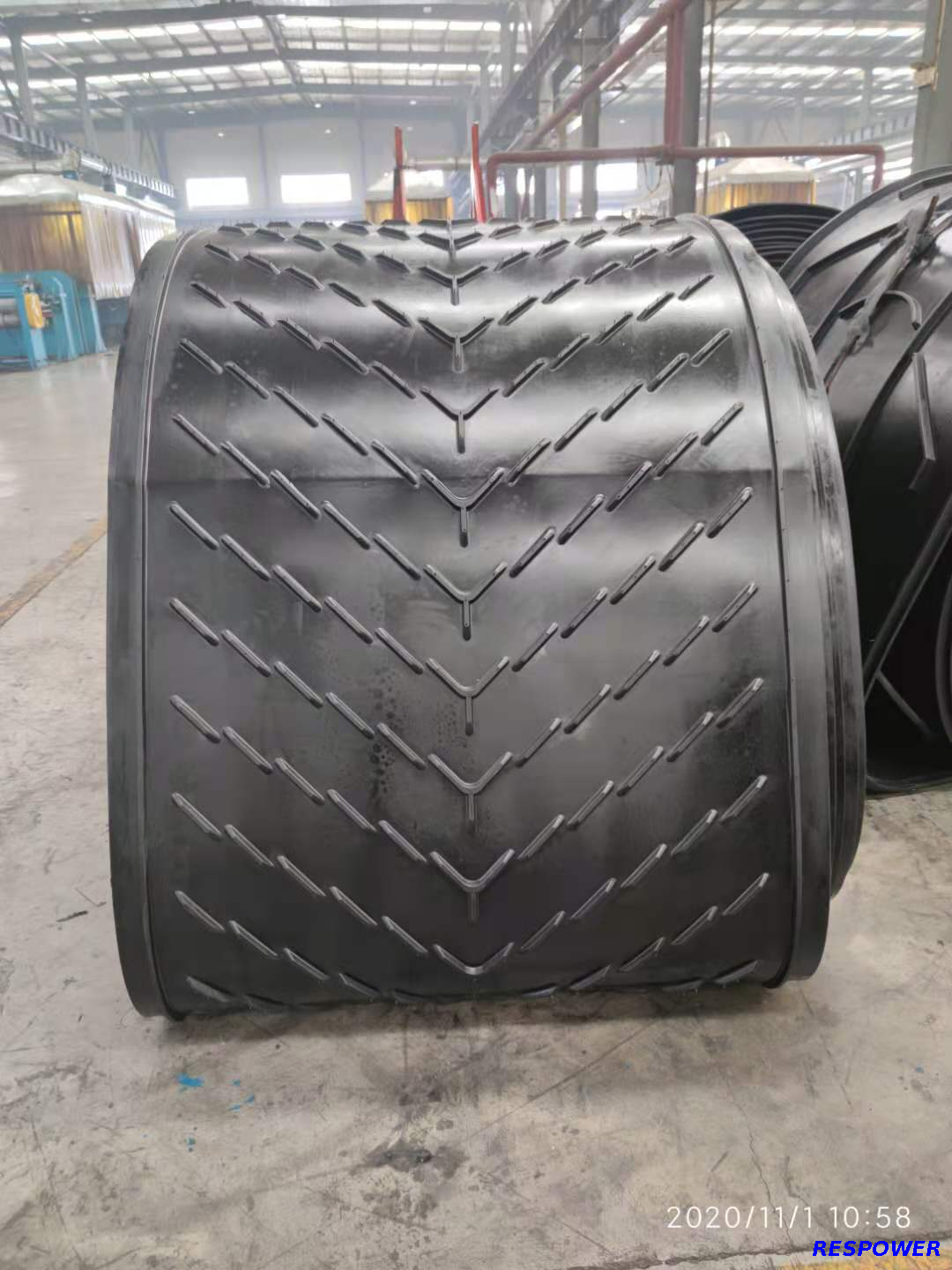

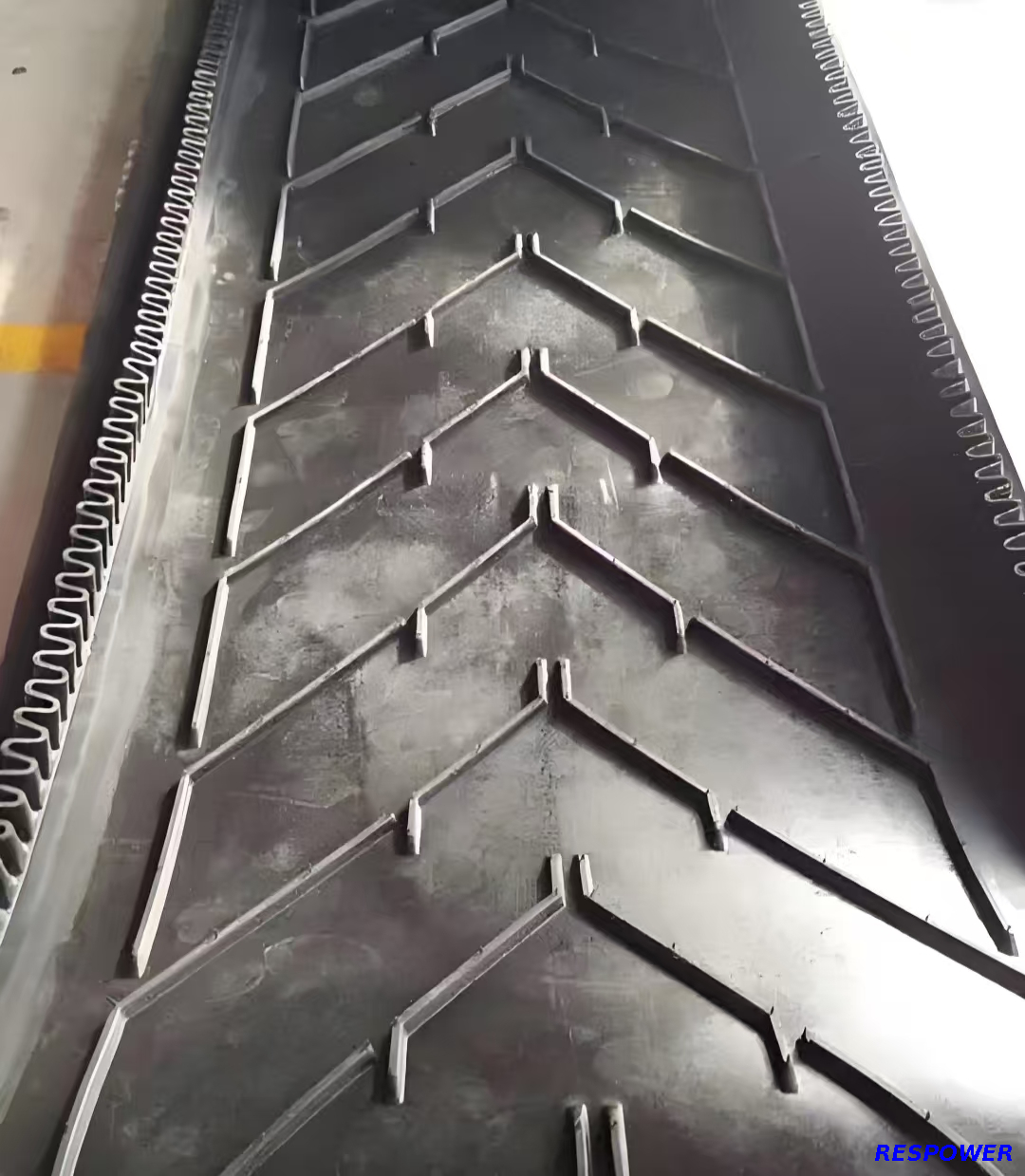

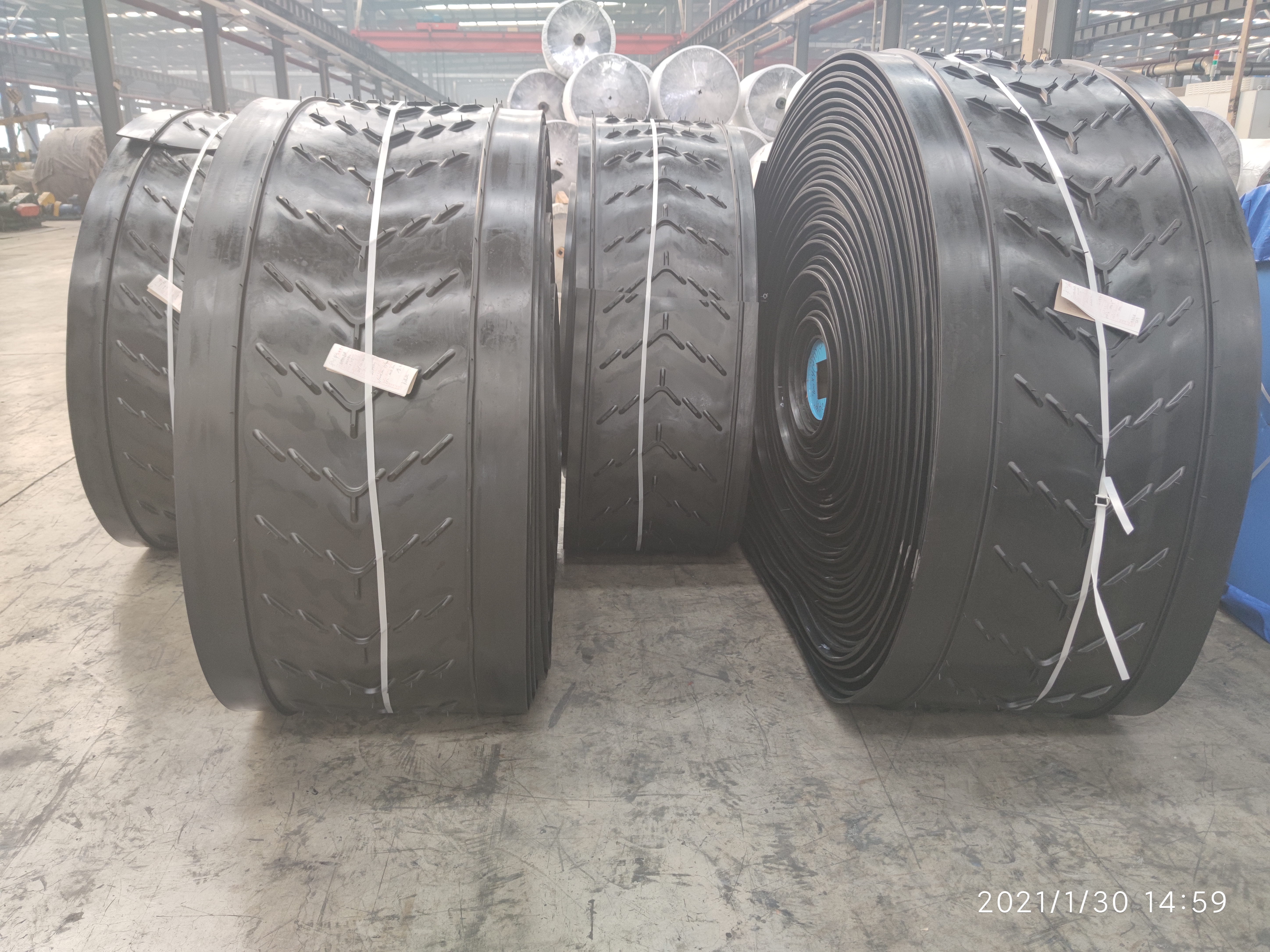

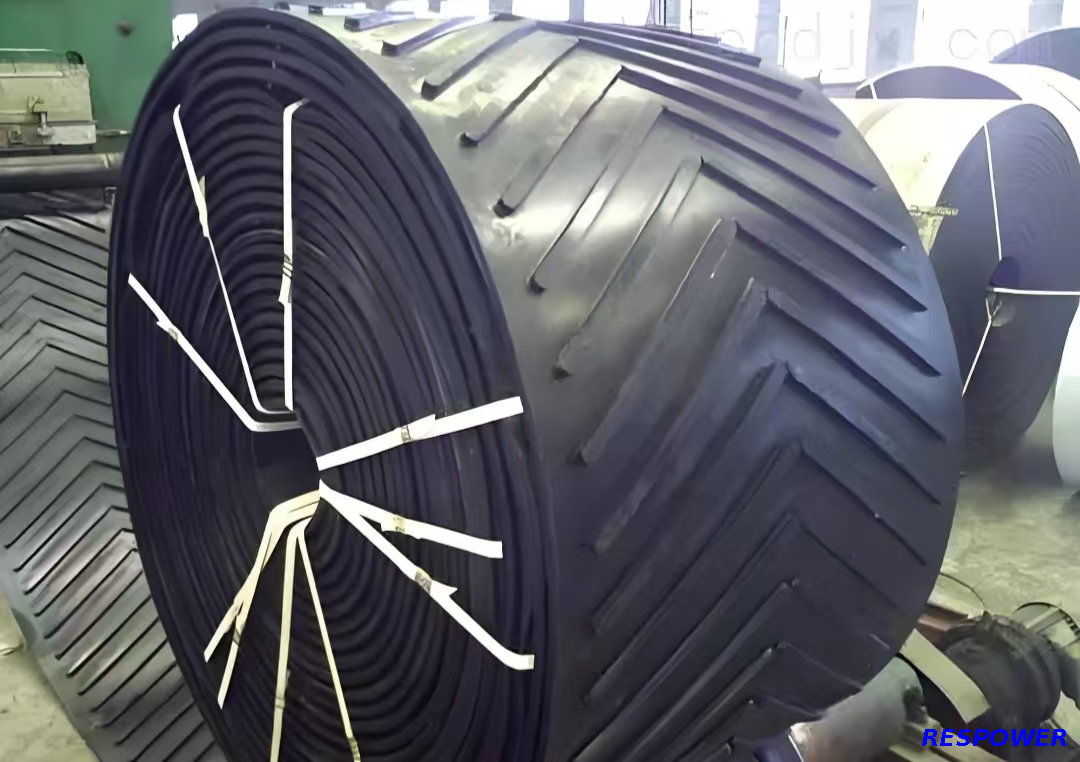

Chevron Conveyor Belt
➢Application
Suitable for conveying or packaging powdery, granular, and blocky materials with an inclination angle of 0-40° to prevent the materials from sliding down.
➢Features
1. Anti-slip
2. Anti-slip spikes and top cover rubber are vulcanized in one piece
3. Anti-slip spike patterns, angles, and spacing are carefully designed
4. Excellent drainage performance
➢Common patterns
Herringbone, figure 8, fishbone, U-shaped, cylindrical, hemp-faced, etc. Or designed according to user requirements.
➢ Precautions
During transportation and storage, the patterned conveyor belt should be kept clean and away from direct sunlight or rain and snow, and should be prevented from contact with acids, alkalis, oils, organic solvents and other substances, and should be kept one meter away from heating devices.
➢Specification
1. Belt core material: ordinary cotton canvas (CC), polyester-cotton blended canvas (CP), nylon (NN), polyester (EP), etc.
2. Band width: 300-800mm
3. Pattern height: 5, 10, 15, 20mm Note: The pattern shape can be designed according to user requirements.
