Fabric Reinforced PVC Suction & Discharge Hose

Construction:Double-ply PVC tube, high strength & polyester fabric reinforcement jacket and rigid PVC corrugated helix.

Applications:Irrigation lines,Pumps, rental and construction dewatering,water Suction and discharge.

Temperature Range:-5℃ -65℃ / 23 ℉ -150 ℉
Availability:
Quantity:
  • RPR01

  • Respower

  • 240621-1

PVC HOSE:


PVC LAYFLAT HOSE

PVC SUCTION HOSE

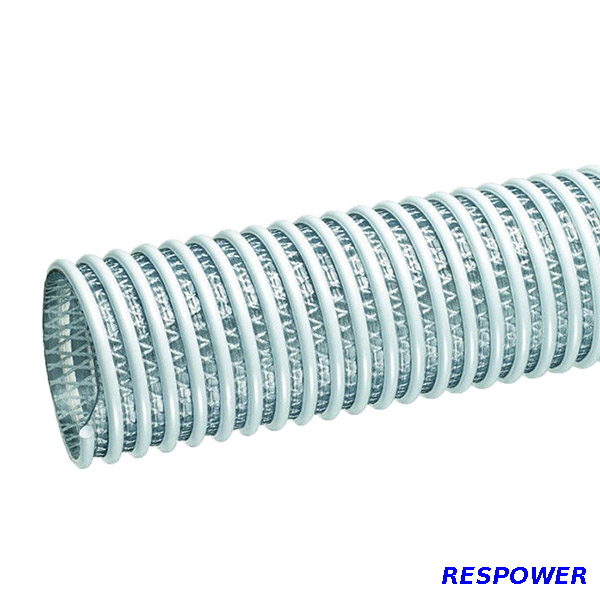

PVC SUCTION & FIBER COMPOSITE HOSE

STEEL WIRE SPIRAL PVC HOSE
PVC STEEL&FIBER COMPOSITE HOSE
PVC FIBER REINFORCED HOSE
PVC SPRAY HOSE

PVC AIR HOSE

PVC LPG GAS HOSE

PVC WELDING HOSE(SINGLE/TWIN)

PVC TRANSPARENT HOSE


PVC STEEL&FIBER COMPOSITE HOSE

Construction:Double-ply PVC tube, high strength & polyester fabric reinforcement jacket and rigid PVC corrugated helix.

Applications:Irrigation lines,Pumps, rental and construction dewatering,water Suction and discharge.

Temperature Range:-5ºC -65ºC / 23 ºF -150 ºF

PVC With High tensile strength fibers and high quality galvanized spring wire Reinforced.
Durable,anti-UV.Compared with the single spring wire reinforced hose, the pressure is higher 2-4 times.
Used for drawing and conveying water, oil and powder in factory,agriculture.
-10ºC to +65ºC(Good flexible under -40ºC condition )
I.D. O.D. W.P. B.P. WEIGHT LENGTH MAX.
MM INCH MM MPA PSI MPA PSI KG/M M/ROLL
5 3/16'' 12 1.0-2.0 145-290 3.0-6.0 430-870 0.13 100±1%
6 1/4'' 13 1.0-2.0 145-290 3.0-6.0 430-870 0.15 100±1%
8 5/16'' 15 1.0-2.0 145-290 3.0-6.0 430-870 0.23 100±1%
10 3/8'' 17 1.0-2.0 145-290 3.0-6.0 430-870 0.26 100±1%
13 1/2'' 22 1.0-2.0 145-290 3.0-6.0 430-870 0.36 100±1%
16 5/8'' 25 1.0-2.0 145-290 3.0-6.0 430-870 0.53 100±1%

Made of special PVC mateial and high strength fiber
Supplying water, gas, oil in agriculture and industry, Food grade material can be used for foodstuffs and sanitation insudtry
High quality, low price, higher performance
Working under 100ºC condition, suitable for different high temperature environments. Or -40ºC condition
Anti-uv
