Feature

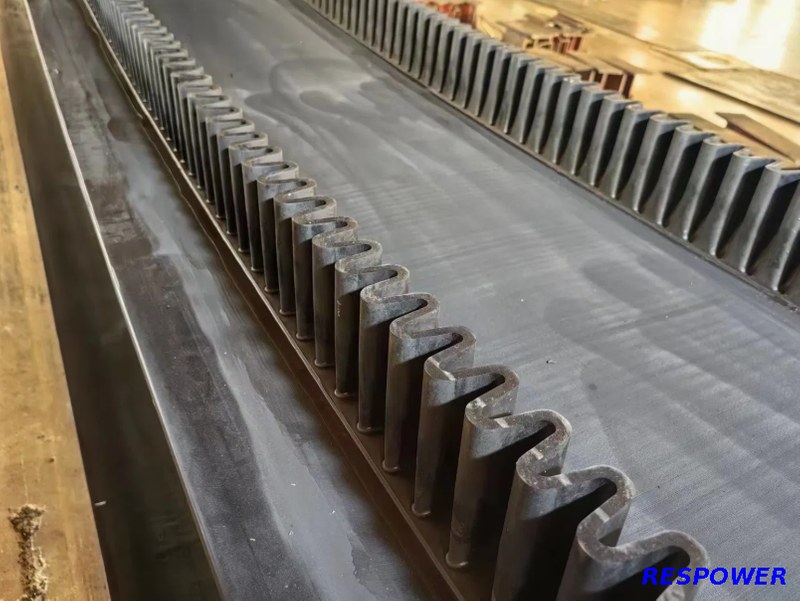

Sidewall conveyor belt is one of the most effective ways of elevating materials in a confined space,the economy is
achieved by single belt operation,wide range material can be handled, less space requirement,no transfer point, low
maintenance and big capacity. Corrugated sidewall belt can be designed into a set of complete transportation system
according to application.
Cover Rubber Qualities
(1) Black Standard High Abrasion Resistant
(2) Black Oil and Fat Resistant.
(3) Heat Resistant to 100°C
(4) High Heat Resistant to 130°C
(5) Flame Retardant
Cleat Specification
All S-Wall Cleats have been specifically design to give optimum performance. The shape of the 'C' and 'TC' types has been created to offer best conveying capacities along with excellent self-cleaning properties. S-Wall cleats are either of the extruded type for the smaller profiles, all larger cleats are moulded to give the best shape retention even when conveying high-density
materials. Cleats are available in either 2.5m for moulded and 3m / 5m lengths for extruded profiles. Cleat profiles are shipped in non-returnable packing cartons, please refer to the price list for ordering details.
