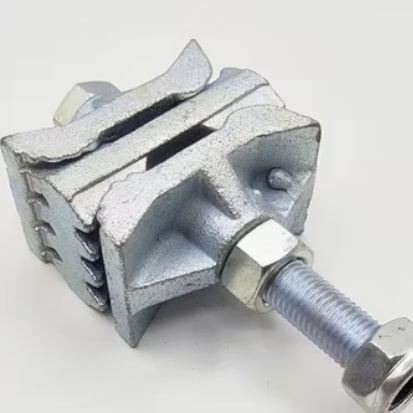

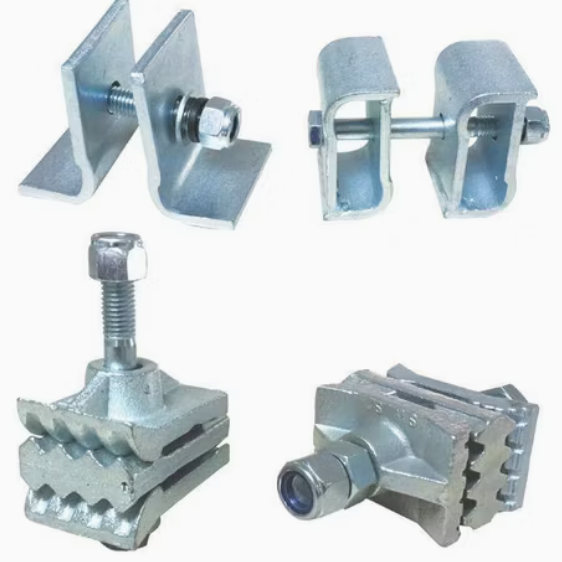

Proper belt clamp will directly influence the running reliability,safety and life span of the elevator belt.It's the safest,the most economical,and the most widely design up to now.Our belt fasteners are widely used by many conveyor equipment manufactures and have unanimous recognition and praise of experts
TECHNICAL SPECIFICATIONS & PARAMETERSBelt Clamp Fastener Operating points:
* Choose different fastener type and quantity according to your belt strength and width.
* Elevator belt round length + Fastener connect belt length = Total belt length.
* Equipped with the locknut which prevent the loose in the operation.
* Set aside some distance (S1&S2-60mm, S4&S5--80mm) from the top of the connect belt, make a center line for the mounting hole.Make sure the center line is perpendicular to elevator belt radial direction or its two edges. It helps make sure the belt won't go deviatedwhen the elevator is running.
| S1 | S2 | S4 | S5 |
| Strength ≤800KN/m | Strength ≤1000KN/m | Strength ≤1200KN/m | Strength ≤1600KN/m |
| Chuck width W=45mm | Chuck width W=45mm | chuck width W=48mm | chuck width W=48mm |
| Chuck height H=62mm | chuck height H=68mm | Chuck height H=72mm | chuck height H=75mm |
| Bolt length L=50mm | Bolt length L=120mm | bolt length L=130mm | Bolt length L=130mm |
| Thread specification M10, bolt strength class 8.8 |
