Description
· Crusher screen wire mesh is also called vibrating screen woven mesh, crusher woven wire mesh, quarry vibrating screen mesh.
· We can supply extensive range of wire mesh, suitable for a variety of applications.
· Mainly used as screen mesh, also widely used in many industries, such as quarrying screen, the screen deck, screen wire for stone crusher, classifying trommel, vibrating screen, road construction equipment
· Used in coal and mining industry.The asphaltum mix round equipment and the mine vibrating screens, also used in foodstuff, chemical industry, pharmacy
Mine screen mesh Feature
· Material: High tensile manganese steel.
· Wire diameter: 1.5mm - 12.8mm. · Opening size: 2mm - 110mm.
· Hole type: Square mesh, rectangular mesh.
· Weaving type: Double crimped, intermediate crimped, flat top crimped, lock crimped.
· Surface treatment: Galvanized before weave and galvanized after weave, painted.

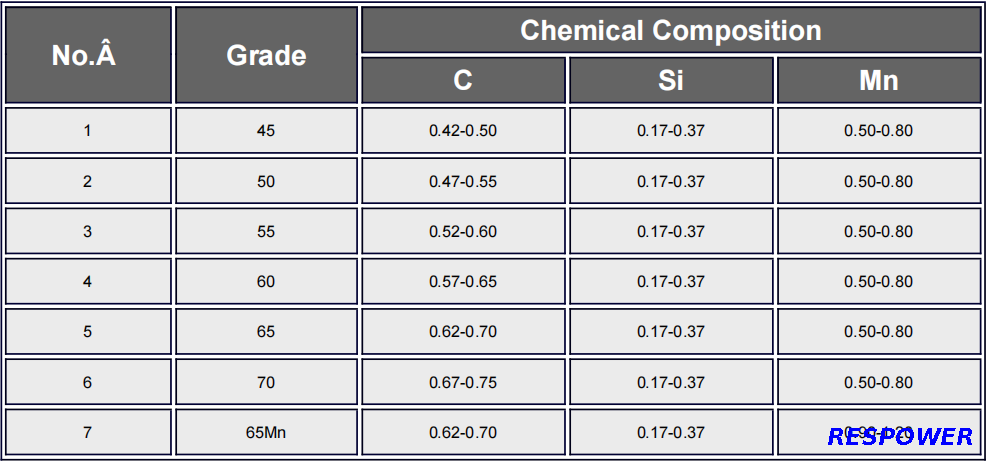

Materials
High carbon steel wire grade 45-70 and 65Mn, stainless steel.
Mining Screen weave Type SHANDONG RESPOWER INDUSTRIAL CO.,LTD
· Double crimp
· Single intermediate crimp
· Double intermediate crimp
· Lock crimp
· Flat top
· Pressure welded

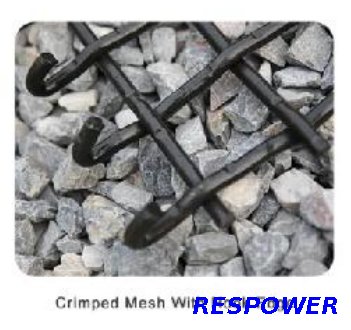

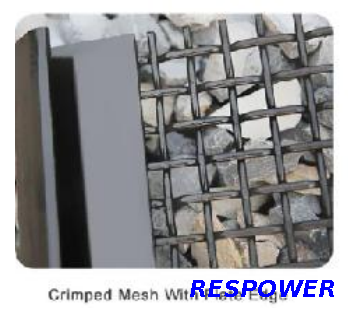

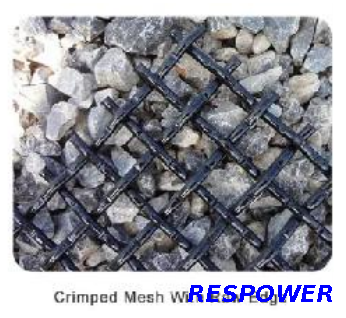

Different Edge Type
Heavy Duty Crimped Wire Mesh Material is High tensile steel wire, 45# steel wire, 65Mn steel wire. It is used in are always used in mine, coal industry for sieving the stone and sand. mesh panels with different edge.

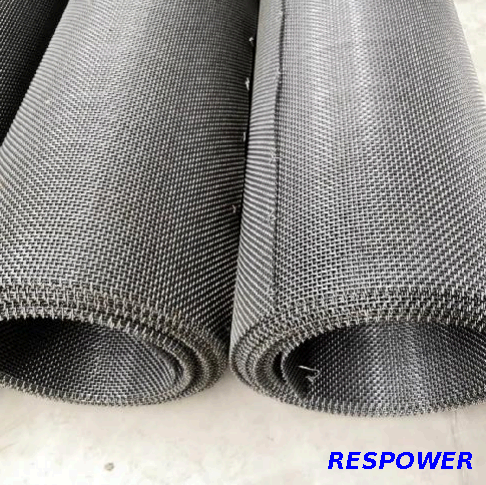

Heavy duty Crimped wire mesh
Heavy duty Crimped wire mesh are the most widely used screens in the aggregate and mining industries, due to their high screening area, precision and price ratio.
The Crimped wire mesh (mining screen wire mesh, square wire mesh) are manufactured in different geometries (square or slotted meshes) and different weaving styles (double crimped,flat mesh, etc.).
