Product Introduction

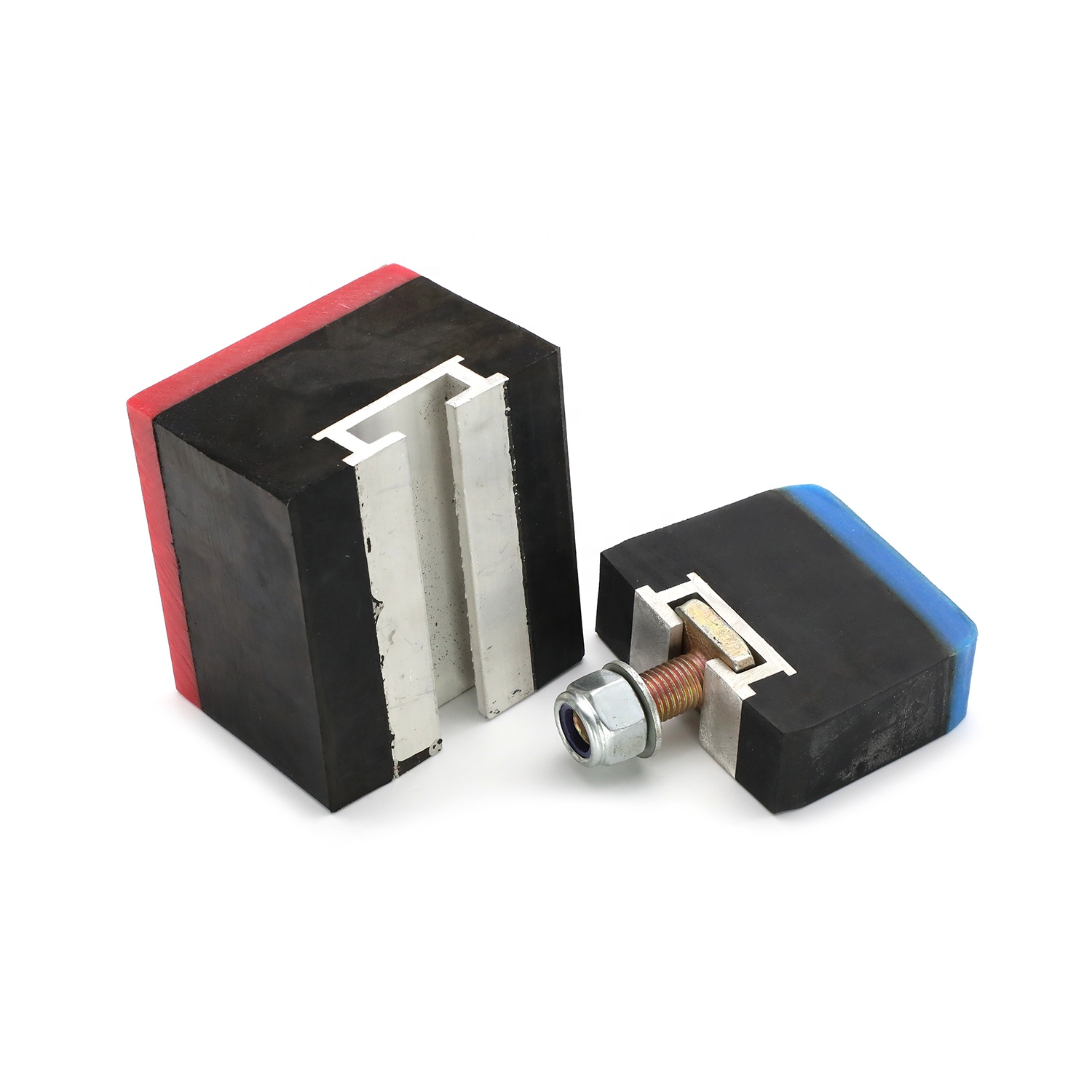

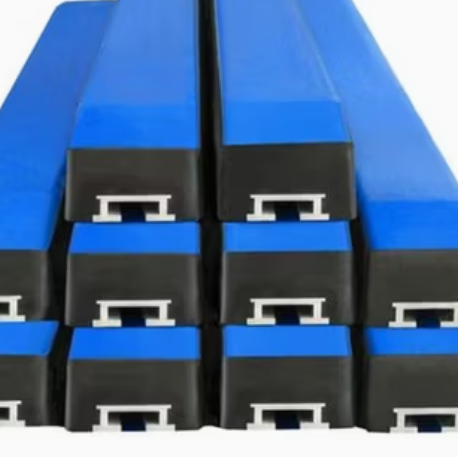

Impact bar is used to protect the items from being damaged at the loading points and also keeps the belt stable.
Impact bar is the combination of rubber, metal frame (steel or aluminum) and UHMWPE material using special heat vulcanization process. Low friction impacts bars are used in the conveyor loading points or transfer points to replace traditional cushion rollers. They are designed to absorb high impact loading and help eliminate spillage and scattering of the products. This results in less wear and tear on your conveyor system, dramatically improving the efficiency of the conveyor system and reducing the maintenance costs.
TECHNICAL SPECIFICATIONS & PARAMETERS
| PRODUCT NO. | SIZE (MM) | UHMWPE Thickness(mm) | T-bolt
M16x45 |
| H | W | L |
| 9216348 | 50/75/100 | 100 | 1200/1220 | 12.5 | 4sets |
| 9216547 | 50/75/100 | 100 | 1400 | 12.5 | 4sets |
| 9216545 | 50/75/100 | 100 | 1500 | 12.5 | 4sets |
| 9216548 | 50/75/100 | 100 | 1600 | 12.5 | 4sets |
| 9216549 | 50/75/100 | 100 | 2000 | 12.5 | 4sets |
