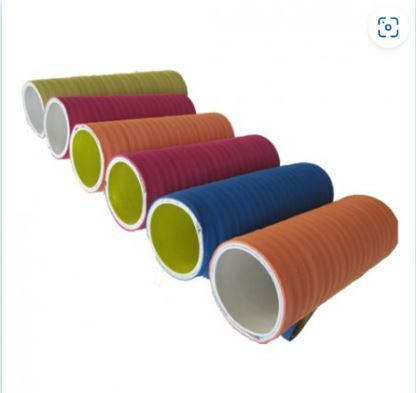

Inner tube: Abrasion oil resistance tube made by good
NBR Reinforcement: HIGH TENSILE FIBER COTTON YARN BRAIDS
Cover: abrasion and aging resistant synthetic rubber Temperature range: -20 up to +80℃
Application: it is suitable to carry the water or air, oil, fuel, gasoline,
gas, water pump, oil pump, gas station etc.
Part No. | Size | I.D. | O.D. | W.P. | B.P. | Weight |
dash | Inch | mm | mm | Bar | Psi | Bar | Psi | Kg/m |
OIL -04 | 1/4" | 6 | 13.00 | 20 | 300 | 60 | 900 | 0.16 |
OIL -05 | 5/16" | 8 | 15.00 | 20 | 300 | 60 | 900 | 0.23 |
OIL -06 | 3/8" | 10 | 17.00 | 20 | 300 | 60 | 900 | 0.26 |
OIL -08 | 1/2" | 13 | 21.00 | 20 | 300 | 60 | 900 | 0.42 |
OIL -10 | 5/8" | 16 | 25.00 | 20 | 300 | 60 | 900 | 0.43 |
OIL -12 | 3/4" | 19 | 29.00 | 20 | 300 | 60 | 900 | 0.54 |
OIL -16 | 1" | 25 | 36.00 | 20 | 300 | 60 | 900 | 0.67 |
OIL -20 | 1-1/4" | 32 | 43.00 | 20 | 300 | 60 | 900 | 1 |
OIL -24 | 1-1/2" | 38 | 48.00 | 20 | 300 | 60 | 900 | 1.24 |
OIL -28 | 1-3/4" | 45 | 54.00 | 20 | 300 | 60 | 900 | 1.7 |
OIL -30 | 1-7/8" | 48 | 59.00 | 20 | 300 | 60 | 900 |  1.8
|
OIL -32 | 2" | 51 | 62.00 | 20 | 300 | 60 | 900 | 2.1 |
