RPR01
Respower
240621-1
Application:widely used for conveying oxygen , acetylene, welding gas ,air in welding machine , architecture and lacquer factory
Tube and cover:PVC material.
Reinforcement:special formula compounding with special pvc resin
Temperature:-5'c ~ +65'c

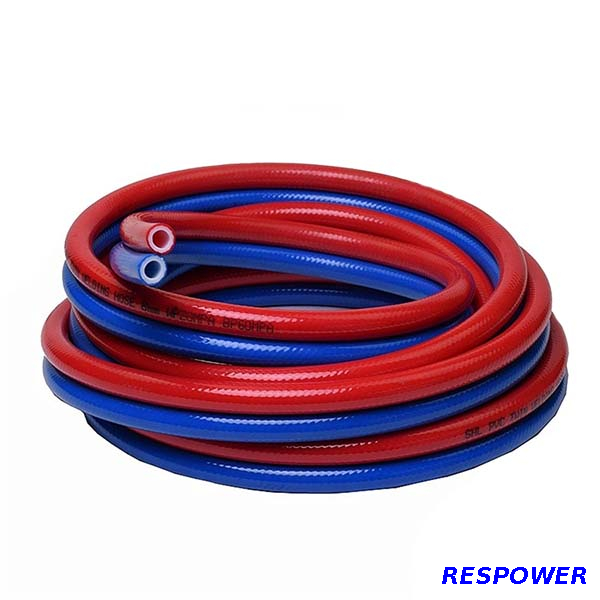

Character:Two tubes welded together , light , elastic , easy to handle , anti-erosion , resistant to fire , and easy to distinguish due to the different colors of the tube
I.D. | O.D. | W.P. | B.P. | WEIGHT | LENGTH MAX. | ||||
MM | INCH | MM | MPA | PSI | MPA | PSI | KG/M | M/ROLL | |
5 | 3/16'' | 12 | 1.0-2.0 | 145-290 | 3.0-6.0 | 430-870 | 0.13 | 100±1% | |
6 | 1/4'' | 13 | 1.0-2.0 | 145-290 | 3.0-6.0 | 430-870 | 0.15 | 100±1% | |
8 | 5/16'' | 15 | 1.0-2.0 | 145-290 | 3.0-6.0 | 430-870 | 0.23 | 100±1% | |
10 | 3/8'' | 17 | 1.0-2.0 | 145-290 | 3.0-6.0 | 430-870 | 0.26 | 100±1% | |
13 | 1/2'' | 22 | 1.0-2.0 | 145-290 | 3.0-6.0 | 430-870 | 0.36 | 100±1% | |
16 | 5/8'' | 25 | 1.0-2.0 | 145-290 | 3.0-6.0 | 430-870 | 0.53 | 100±1% |
Made of special PVC mateial and high strength fiber
Supplying water, gas, oil in agriculture and industry, Food grade material can be used for foodstuffs and sanitation insudtry
High quality, low price, higher performance
Working under 100ºC condition, suitable for different high temperature environments. Or -40ºC condition
Anti-uv
