Pipe Conveyor Belt

Pipe Conveyor Belt
Pipe conveyor belt is distinctive in its formation of a fully enclosed tube, effectively preventing material spillage and environmental contamination.We offer premium solutions and expert support for dimensioning the right belt structure.

1. Range:

outer diameter of pipe belt up to 900mm.

1. Cover Grade:

Abrasion resistance, Chemical resistance, Flame resistance, Heat resistance, LRR/SLRR etc.

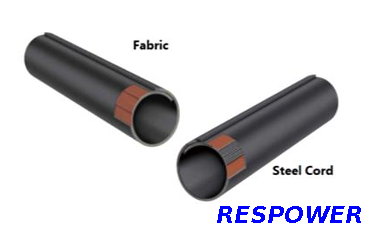

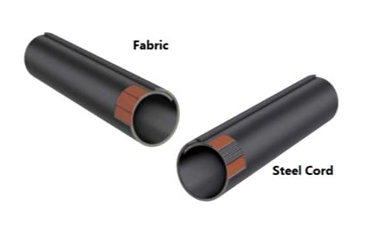

Carcass: EP, Steel Cord, Kevlar

1. Applications:

Mainly be used to transportation of bulk solids in the Cement,Fertilizer, Coal, Powder,Steel,Pulp and paper,Food grains etc.
Pipe converyors overcome some problems commonly associated with conventional conveyors,e.g spillage of materials, belt traning, limited angles conveyance, horizontal curves and multiple flights.

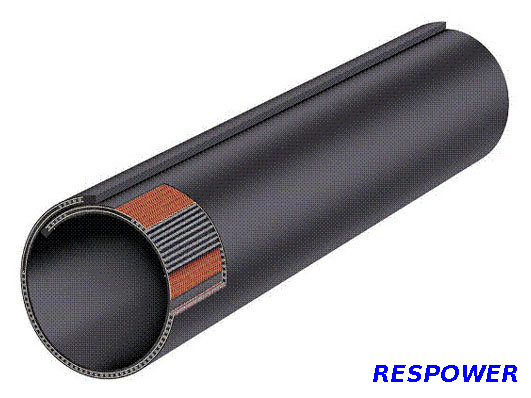

Construction

                                                                                                                                               pipe belt width up to 3200mm
outer diameter of pipe belt up to 900mm
The pipe diameter should be min. 3 times the lump size.
The filling degree should be between 60 and 75 %
