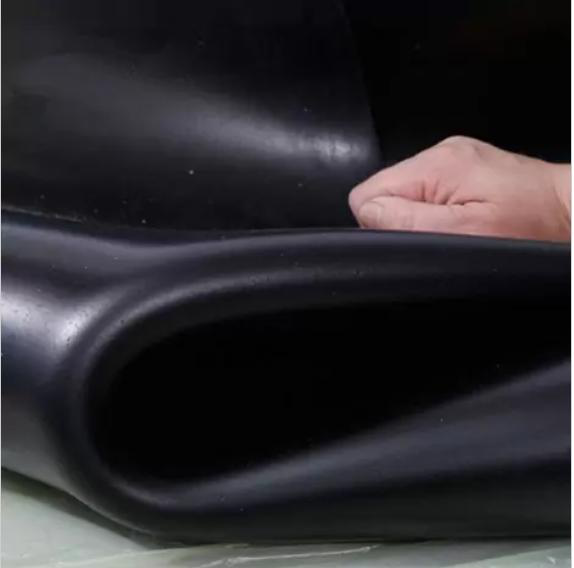

SBR Rubber Sheet:
Styrene-butadiene Rubber is a co-polymer of styrene & butadiene.
• Its general properties are similar to Natural Rubber, but it is more resistant to ageing and temperature.
• Temperature range: -50º C to +110º C.
• Due to its unsaturated molecular structure, SBR materials tend to have only moderate resistance to tearing, ozone and general weathering , but do not have the same resilience as Natural Rubber.
• Resistance to Chemicals; good resistance to many inorganic chemical products. Limited resistance to mineral oils, but is not recommended for using with oxidising acids and general organic liquids.
Products Description
Product Description:Styrene butadiene rubber (SBR)
Function: Widely used in general cushioning part, sealing, matting etc.
Color: Many colors available, black,white, red, green etc.
Insertion: Cloth and nylon insertion available.
Surface: smooth and fabric surface available.
Customization: Size can be customized to your requirements.
Technical data sheet
Elastomer | Durometer Hardness | Tens. Stren. | Ultimate Elongation |
SBR | Shore A+/-5 | Mpa | % Min |
SBR1 | 65 | 3 | 150 |
SBR2 | 70 | 2.5 | 130 |
SBR3 | 50 | 5 | 300 |
SBR4 | 65 | 5 | 220 |
SBR5 | 65 | 5 | 220 |
SBR6 | 70 | 4 | 300 |
SBR7 | 70 | 4 | 200 |
SBR8 | 50 | 8.5 | 400 |
SBR9 | 65 | 4 | 200 |
SBR10 | 80 | 4 | 200 |
SBR11 | 90 | 4 | 150 |

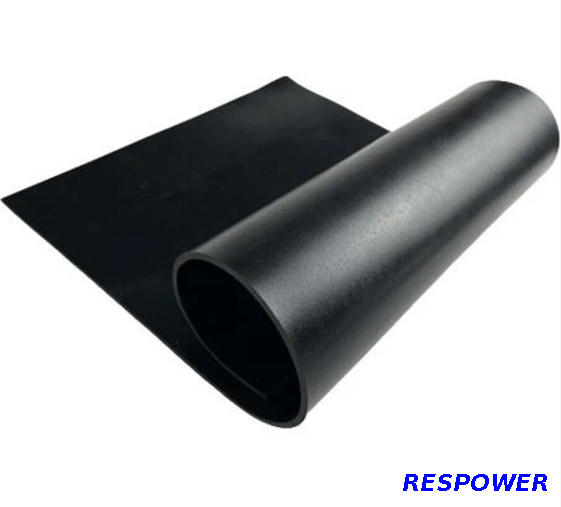

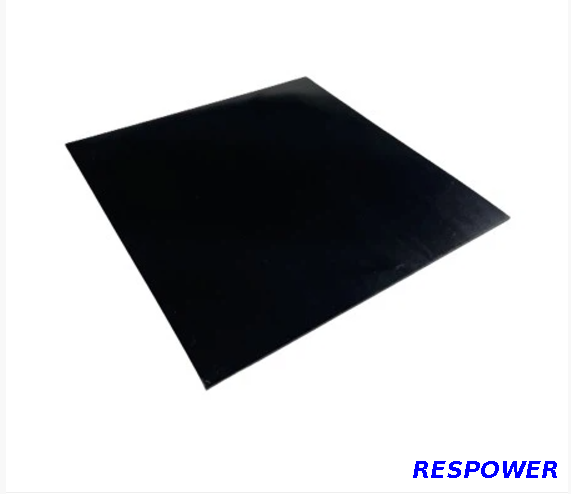

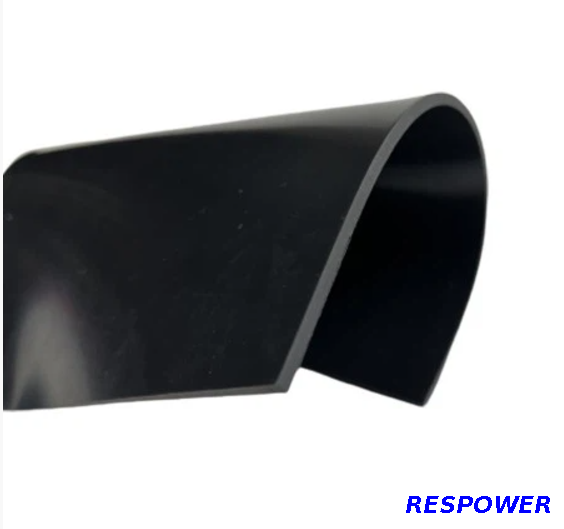

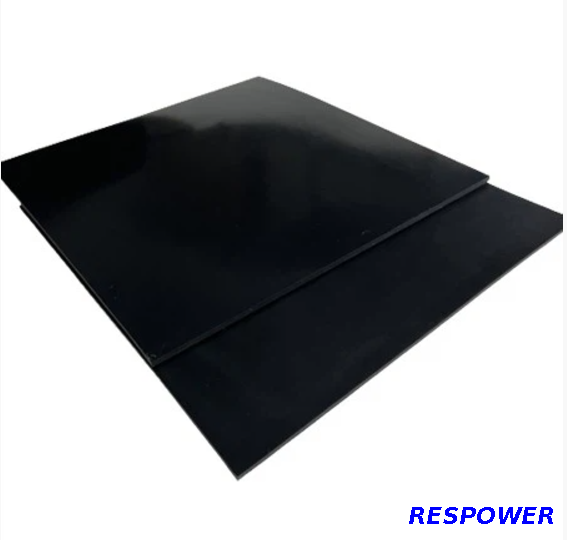

Roll size & color:
Thickness: 1-50mm
Width: 1-2m
Length: 50 meters in max length
Color: mainly black, other colors can be produced as well
