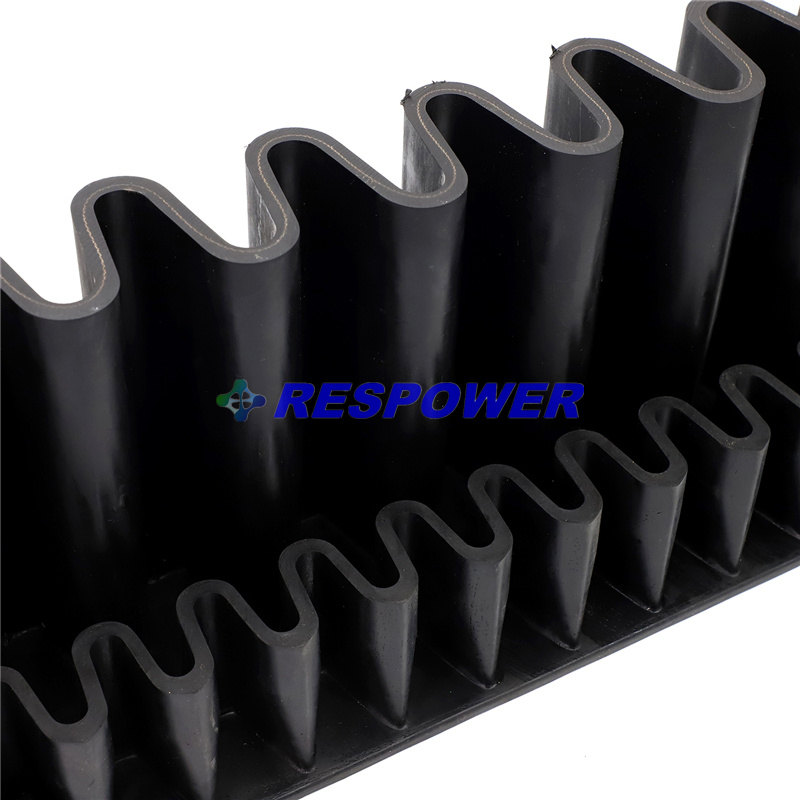

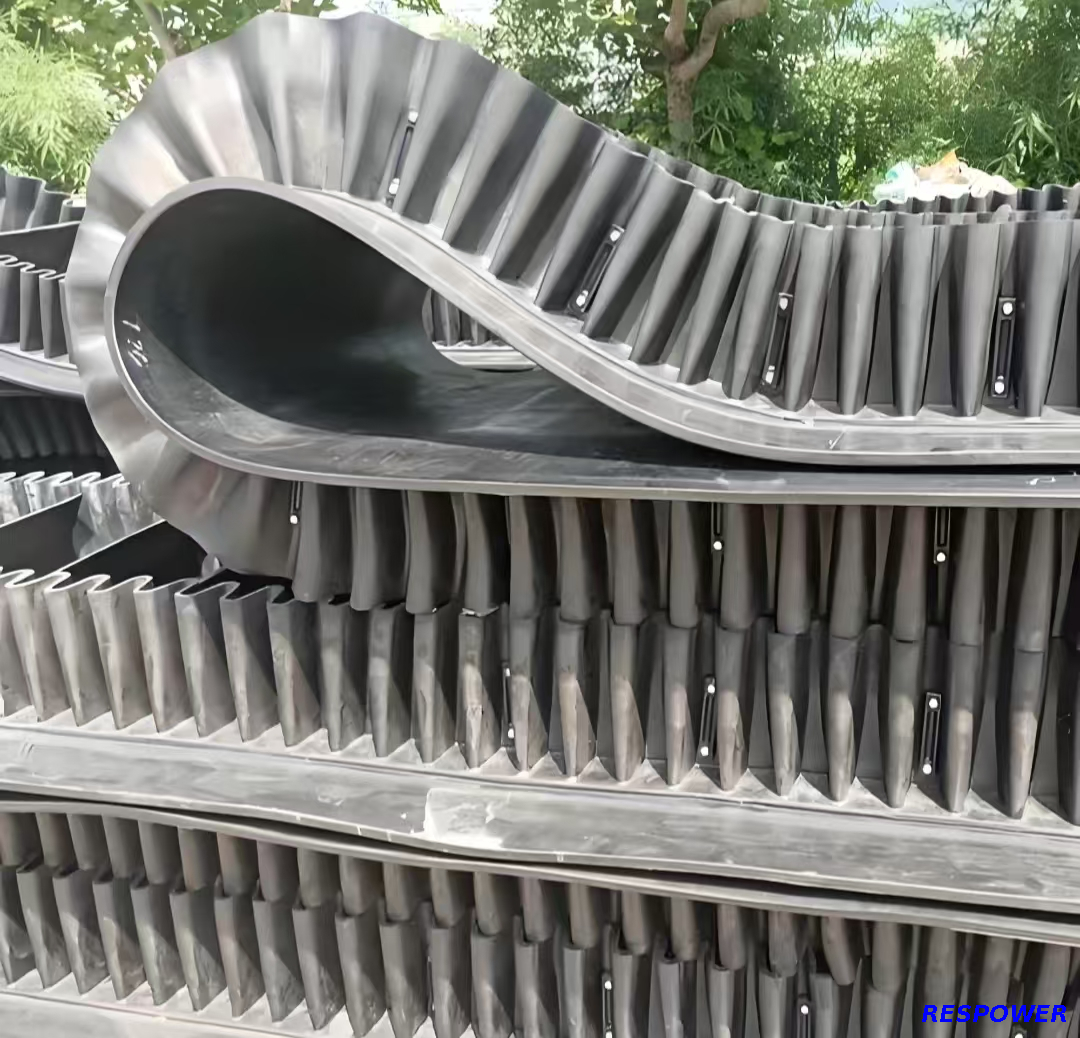

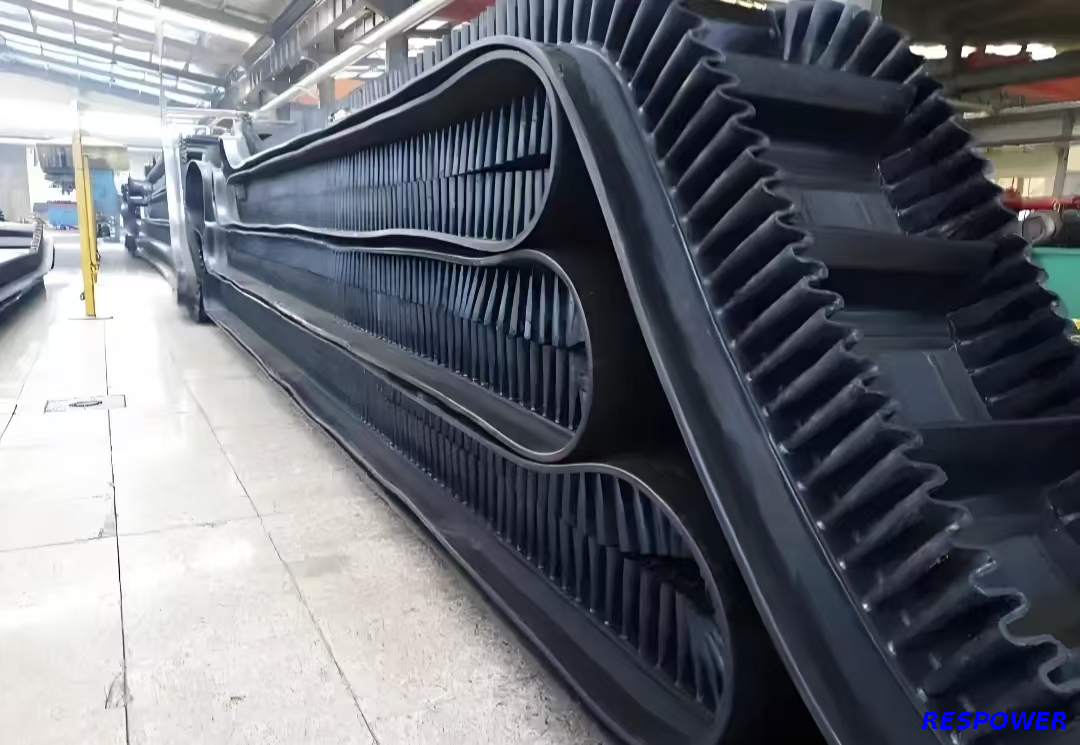

Corrugated sidewall high angle conveyor belt
➢ Application:

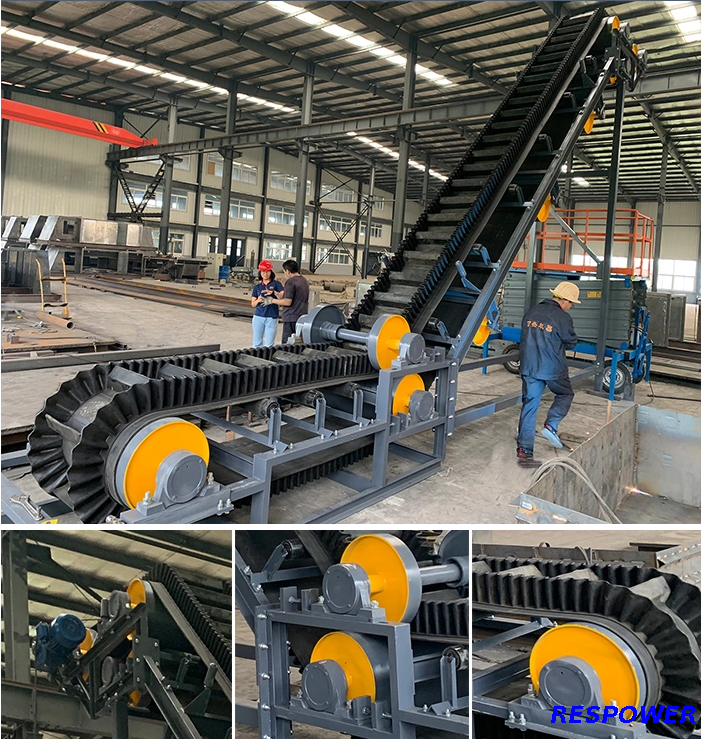

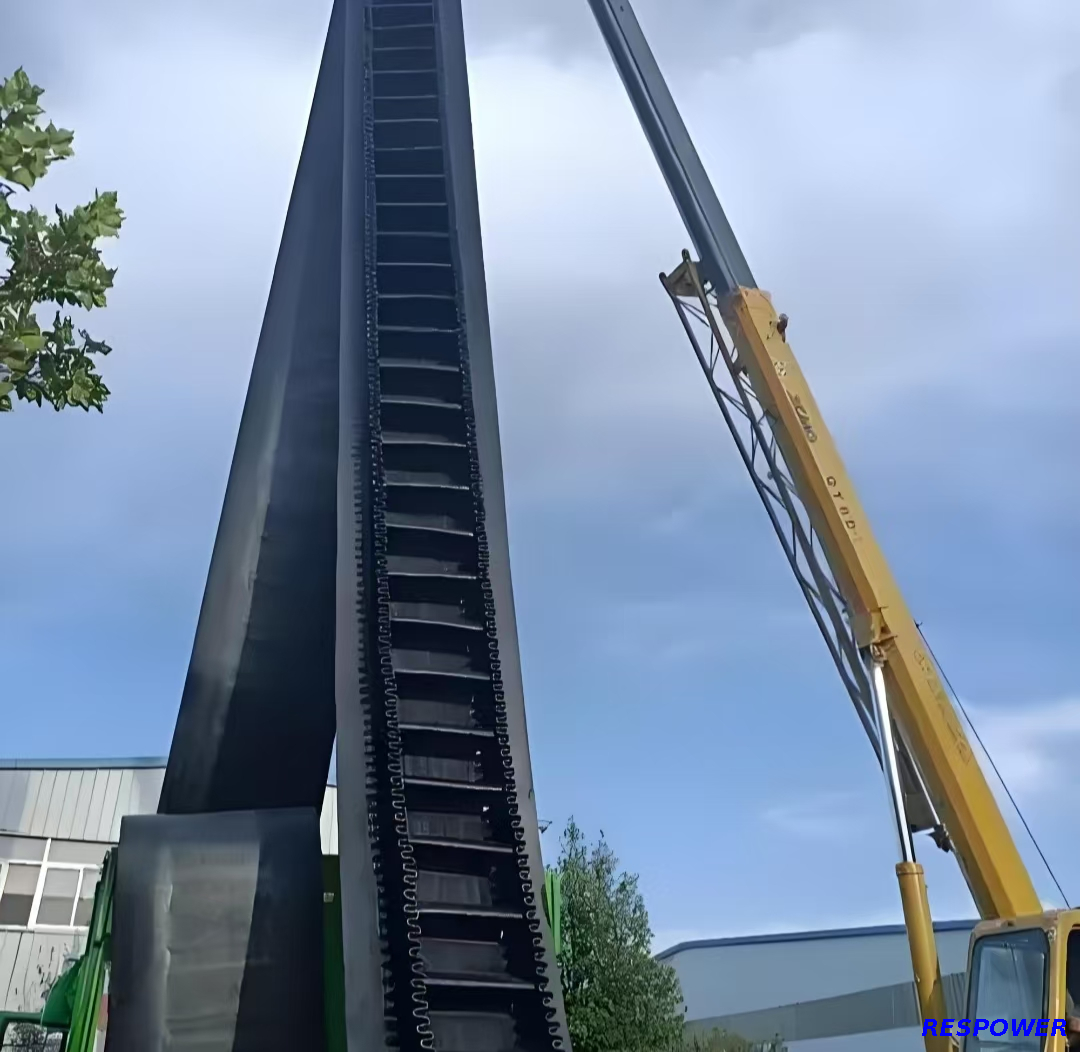

Suitable for conveying powder, granules, small pieces, paste or liquid that are easy to scatter at a conveying angle of 30-90°. Varieties: divided into fabric type and wire rope core type according to different skeleton materials. Applicable to metallurgy, electricity, coal, chemical industry, grain, ports, docks, machinery and other fields.
➢ Features:
Small footprint, low investment, low energy consumption, simple structure, large conveying capacity, higher lifting height.
➢ Common types:
Corrugated sidewall conveyor belts are divided into ordinary type, heat-resistant type, flame-retardant type, cold-resistant type, acid-alkali-resistant type, oil-resistant type, etc. according to the different properties of the covering rubber.
➢Specifications:
1. Belt core material: CC-56, NN100, NN150, NN200, NN300, NN400 2. Belt width: 100mm-2200mm 3. Fabric layer: 2-10 layers 4. Covering rubber: working surface: 1.5-8mm non-working surface: 0mm-4.5mm
➢Standard: Comply with HG/T4062-2008, GB/T7984-2013, GB/T9770-2013.
Metal sidewall conveyor belt
➢Application:
Widely used in annealing furnace mesh belt, baking furnace mesh belt, etc. in glass products industry. Food processing industry, dehydrated vegetables, quick-frozen food single freezer pre-treatment mesh belt, chain mesh. Powder metallurgy, metal heat treatment, quenching, sintering, brazing, roasting, brightening, blackening, bearings, carburizing high temperature furnace mesh belt, baffle mesh belt, coating drying line conveyor mesh belt, foam nickel reduction production line mesh belt, cleaning machine, hoist, dryer, drying machine, curing furnace mesh belt. Various conveying process chain nets and mesh belts.
➢Material:
A3 low carbon steel, 45# steel, 1Cr13 heat-resistant steel, stainless steel, 304 stainless steel, 1Cr18Ni9Ti stainless steel, 0Cr18Ni14NO2CU2 heat-resistant and acid-resistant steel, etc.
➢ Specifications:
Cotton canvas core CC-56 Nylon cloth core NN100, NN150, NN200, NN300, NN400 Polyester cloth core EP100, EP150, EP200, EP300, EP400 Wire rope core ST1000-ST2000 Sidewall height (mm): S80, S100, S120, S160, S200, S240, S300, S400 Partition height (mm): TC75, TC90, TC110, TC140, TC180, TC220, TC280, TC380
