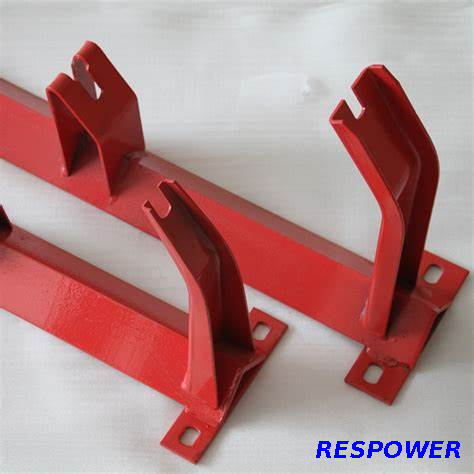

CEMA-C Carring Trough Roller Frame Brackets
Roller brackets is an important part of belt conveyor and is used to support rollers and roller sets.
types:
Liner frame and offsets frame.
The related parameters for the frame:
1. The material is Q235(Chinese Standard) equal to ST37(Din standard)
2. The thinkness of the steel is 4mm-10mm
3. Welding: Mixed gas shielded arc welding

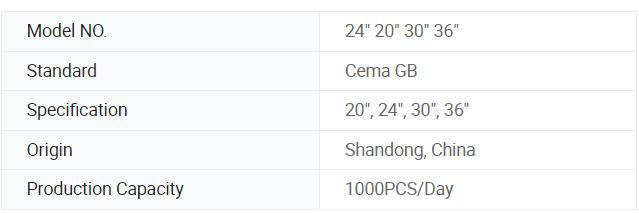

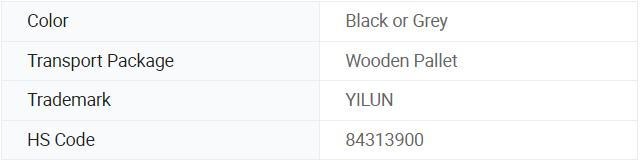

Basic Info.
Our conveyor frames are in accordance with ISO and GB standards or Clients' standard. Feature of steel metal conveyor bracket
1) It is used to support the conveyor idler roller.
2) Hot dip galvanized, rust resistance, painting,baking paint
3) Roller bracket is an important component of a machine.
Description | 20,30,35,45 degree angle metal conveyor idler bracket for mining equipment parts |
Standard | ISO CEMA DIN TUV |
Belt Width | 500 600 650 750 800 900 1000 1050 1200 1350 1400 1500 1800 2000 2400 mm |
Materials | Q235 carbon angle steel metal |
Type | DTII, TD75, aligning,CEMA |
Degree | 10 20 30 35 45 10±5 20±5 |
Welding | Automatic welding |
Surface | Electrostatic spray painting |
Application | For support conveyor idler roller mainly used in coal mine,power plant,cement plant,port and so on |

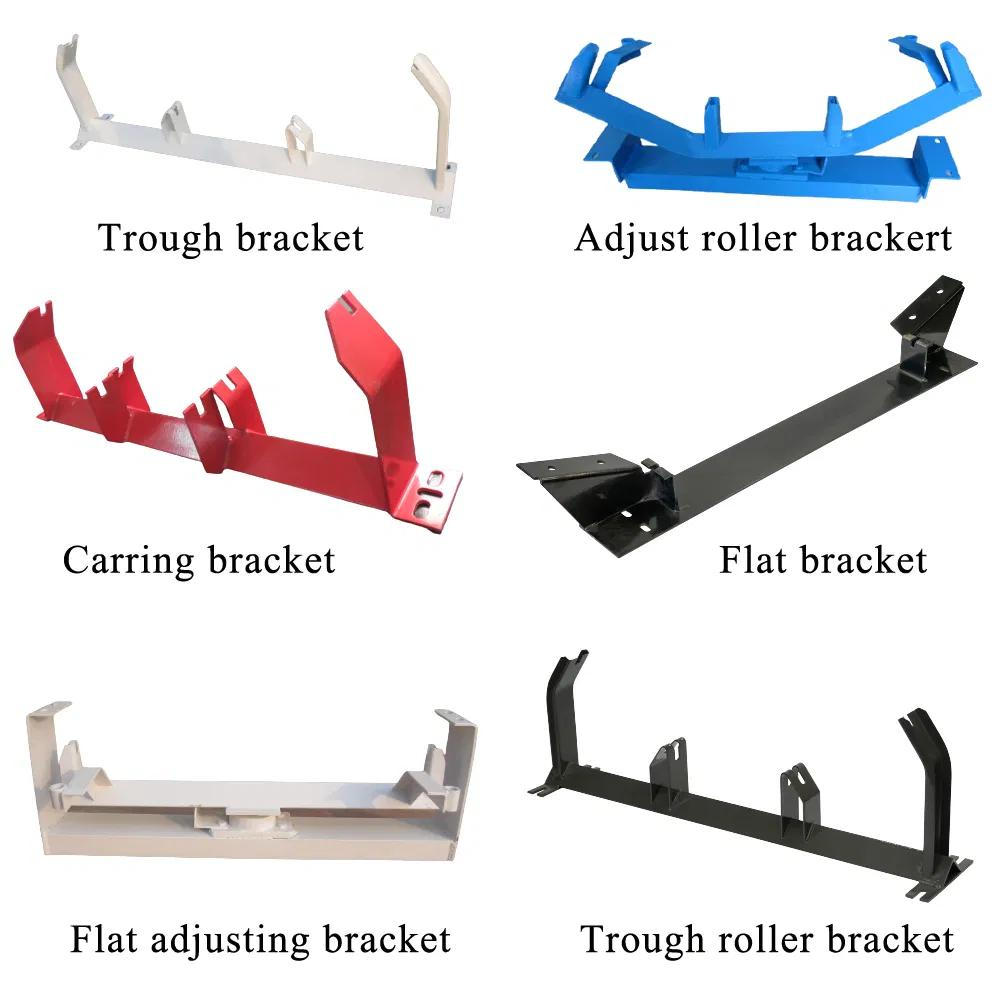

Different kinds of roller frame and brackets
