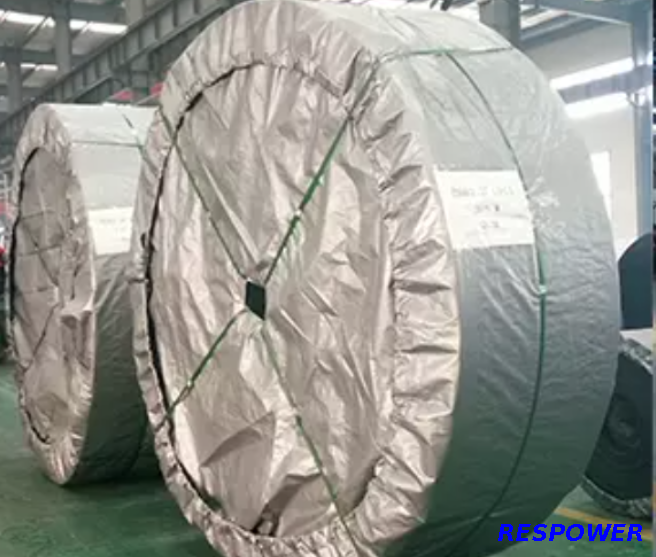

Straight warp conveyor belt (SWbelt)
Product Description:
Straight warp conveyor belt(SWbelt) is suitable for occasions with large conveying drop, large load capacity and high speed, and is widely used in mining, electric power, port and other industries.

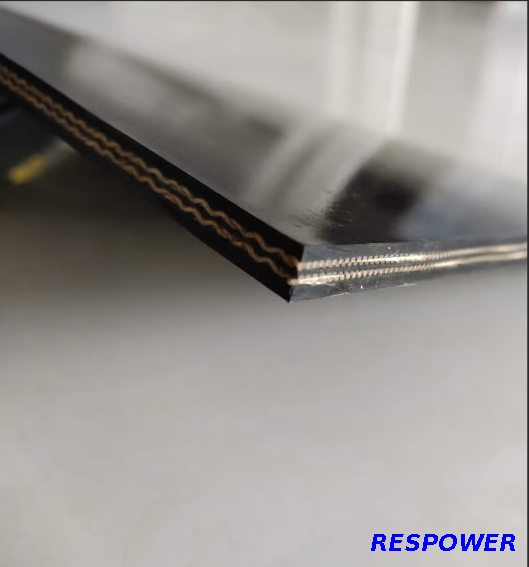

This tape uses 1-2 layers of SW canvas instead of multi-layer EP or nylon canvas, which can save 7-17% of the full thickness, improve the bending of the tape, and use smaller pulleys to make the tape run well, so that the length of the tape reaches 400-500 meters, reducing production loss.

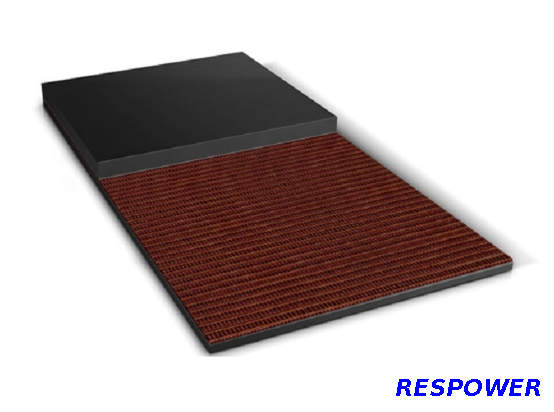

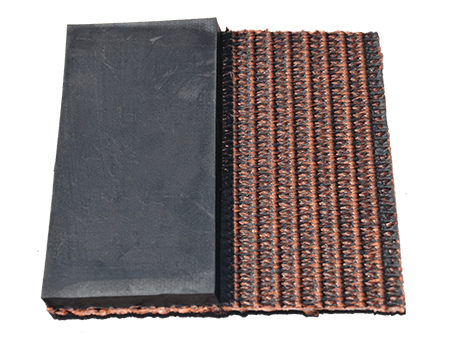

SW fabric layer adopts a special weaving method, which has high tensile strength, which greatly reduces the working elongation of the belt, and the special straight warp structure can absorb the impact force better than EP or nylon materials, prolonging the service life of the belt.

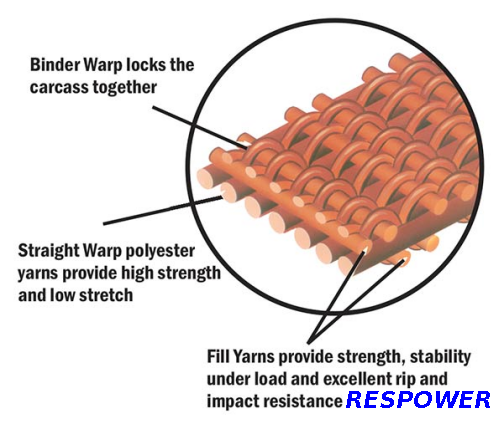

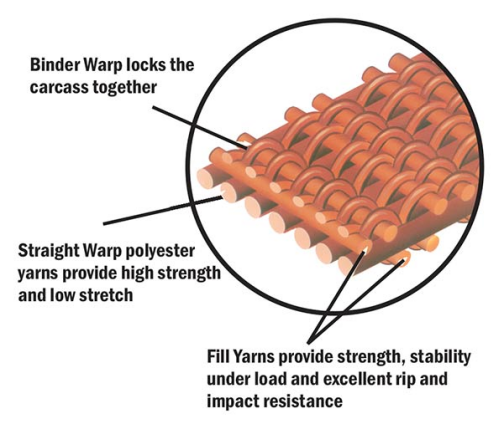

Parallel planes of heavyweight, high-strength yarns together with a binder yarn, develop a total departure from the traditional plies belt concept and constructions. It is designed to carry a large capacity of material, such as logs or crushed stone, have Superior endurance performance in
rugged environment.
Features:
·Impact resistant
·Good flexibility
·Stable working tension
·Lower thickness
·Longer roll length
·Strong adhesion
·Light weight
·Excellent troughing
LoStandard Specification
Note: It can be customized according to the customers' requirements. Rubber cover quality of conveyor belt of different standard for choice:
