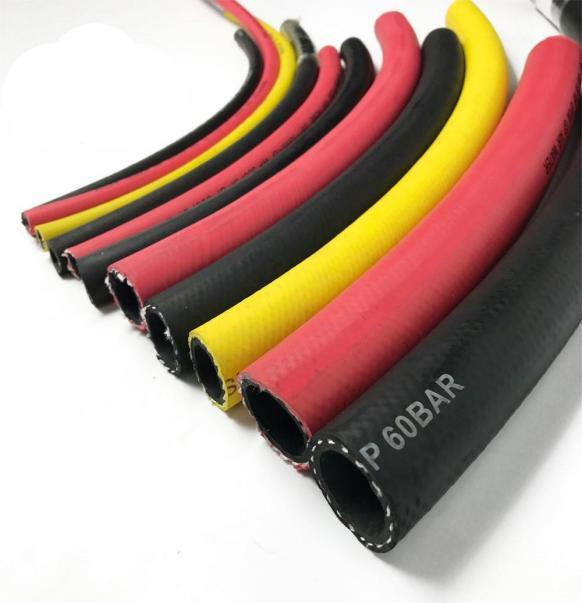

Air / Water hose
Inner tube: abrasion and aging resistant synthetic rubber
Reinforcement: high tensile fiber cotton yarn braids (1 or 2) Safety factor: 3:1
Cover: abrasion and aging resistant synthetic rubber Skive: Non Skive
cover Temperature range: -20 up to +80℃ with air or water service
Application: It is suitable to carry the water or air, air tools, water pump, irrigation service of field
Part No. | Size | I.D. | O.D. | W.P. | B.P. | Weight |
dash | Inch | mm | mm | Bar | Psi | Bar | Psi | Kg/m |
AW-04 | 1/4" | 6.00 | 13.00 | 20 | 300 | 60 | 900 | 0.17 |
AW-05 | 5/16" | 8.00 | 15.00 | 20 | 300 | 60 | 900 | 0.25 |
AW-06 | 3/8" | 10.00 | 17.00 | 20 | 300 | 60 | 900 | 0.29 |
AW-08 | 1/2" | 13.00 | 21.00 | 20 | 300 | 60 | 900 | 0.42 |
AW-10 | 5/8" | 16.00 | 25.00 | 20 | 300 | 60 | 900 | 0.48 |
AW-12 | 3/4" | 19.00 | 29.00 | 20 | 300 | 60 | 900 | 0.6 |
AW-16 | 1" | 25.00 | 36.00 | 20 | 300 | 60 | 900 | 0.8 |
AW-20 | 1 1/4" | 32.00 | 43.00 | 20 | 300 | 60 | 900 | 0.94 |
AW-24 | 1 1/2" | 38.00 | 48.00 | 20 | 300 | 60 | 900 | 1.08 |
AW-32 | 2" | 51.00 | 62.00 | 20 | 300 | 60 | 900 | 1.8 |

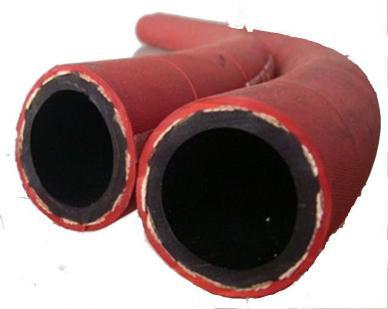

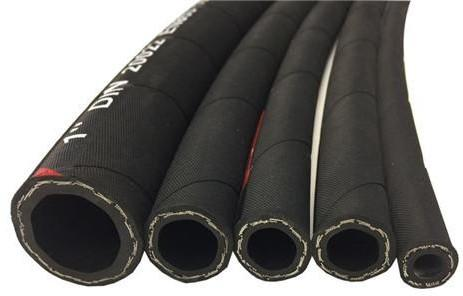

OIL HOSE
Inner tube: Abrasion oil resistance tube made by good
NBR Reinforcement: HIGH TENSILE FIBER COTTON YARN BRAIDS
Cover: abrasion and aging resistant synthetic rubber Temperature range: -20 up to +80℃
Application: it is suitable to carry the water or air, oil, fuel, gasoline,
gas, water pump, oil pump, gas station etc.
Part No. | Size | I.D. | O.D. | W.P. | B.P. | Weight |
dash | Inch | mm | mm | Bar | Psi | Bar | Psi | Kg/m |
OIL -04 | 1/4" | 6 | 13.00 | 20 | 300 | 60 | 900 | 0.16 |
OIL -05 | 5/16" | 8 | 15.00 | 20 | 300 | 60 | 900 | 0.23 |
OIL -06 | 3/8" | 10 | 17.00 | 20 | 300 | 60 | 900 | 0.26 |
OIL -08 | 1/2" | 13 | 21.00 | 20 | 300 | 60 | 900 | 0.42 |
OIL -10 | 5/8" | 16 | 25.00 | 20 | 300 | 60 | 900 | 0.43 |
OIL -12 | 3/4" | 19 | 29.00 | 20 | 300 | 60 | 900 | 0.54 |
OIL -16 | 1" | 25 | 36.00 | 20 | 300 | 60 | 900 | 0.67 |
OIL -20 | 1-1/4" | 32 | 43.00 | 20 | 300 | 60 | 900 | 1 |
OIL -24 | 1-1/2" | 38 | 48.00 | 20 | 300 | 60 | 900 | 1.24 |
OIL -28 | 1-3/4" | 45 | 54.00 | 20 | 300 | 60 | 900 | 1.7 |
OIL -30 | 1-7/8" | 48 | 59.00 | 20 | 300 | 60 | 900 | 1.8 |
OIL -32 | 2" | 51 | 62.00 | 20 | 300 | 60 | 900 | 2.1 |
OXYGEN HOSE
Other name: Welding hose, Oxygen welding hoses, Flexible Reinforced oxygen Hoses, Reinforced oxygen tubing, Rubber oxygen pipe line, Acetylene Rubber Hose, Acetylene welding Hose.
Tube: Black, smooth, synthetic rubber.
Reinforcement: High-tensile synthetic yarn braided or spiraled.
Cover: Blue or red, smooth (streaky finish) synthetic rubber, abrasion, weather and abrasion resistant.
Application: Suitable for welding and cutting equipment to transport oxygen/acetylene.
Working Temperature: -35ºC to 90ºC.
Specification:
I.D. | O.D. | W.P. | B.P. | WEIGHT | LENGTH MAX. |
MM | INCH | MM | MPA | PSI | MPA | PSI | KG/M | M/ROLL |
5 | 3/16" | 12 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.13 | 100±1% |
6 | 1/4" | 13 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.15 | 100±1% |
8 | 5/16" | 15 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.23 | 100±1% |
10 | 3/8" | 17 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.26 | 100±1% |
13 | 1/2" | 22 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.36 | 100±1% |
16 | 5/8" | 25 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.53 | 100±1% |
19 | 3/4" | 29 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.64 | 100±1% |
25 | 1" | 36 | 1.0~2.0 | 145~290 | 3.0~6.0 | 430~870 | 0.85 | 100±1% |
