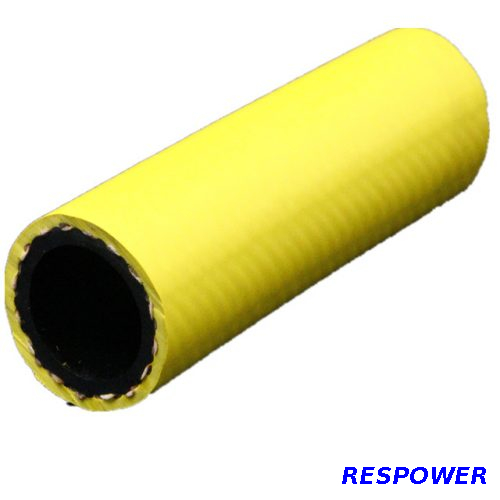

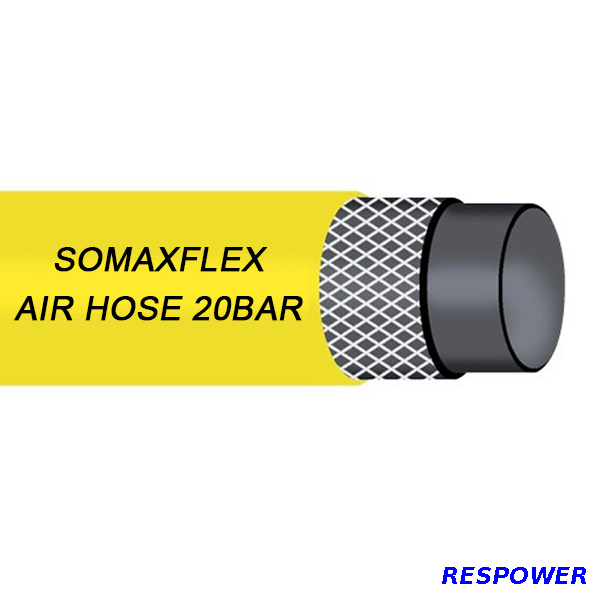

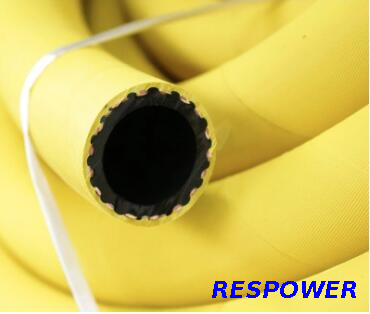

Smooth Yellow Air Hose-Extruded Smooth 20Bar
Application:
Designed for compressed air, to convey water and non-aggressive fluids in various industrial and agricultural applications.
Temperature:From -25 °C to +80 °C
Construction Tube: Black, seamless synthetic rubber compound.
Reinforcement: High strength synthetic yarn.
Cover: Yellow EPDM, abrasion, ozone and weather resistant.
PVC With High tensile strength fibers and high quality galvanized spring wire Reinforced.
Durable,anti-UV.Compared with the single spring wire reinforced hose, the pressure is higher 2-4 times.
Used for drawing and conveying water, oil and powder in factory,agriculture.
-10ºC to +65ºC(Good flexible under -40ºC condition )
Medium duty hose for air drills and pneumatic tools, especially in mines, quarries and the building industry.
| I.D. | O.D. | W.P. | B.P. | WEIGHT | LENGTH MAX. |
| MM | INCH | MM | MPA | PSI | MPA | PSI | KG/M | M/ROLL |
| 5 | 3/16'' | 12 | 1.0-2.0 | 145-290 | 3.0-6.0 | 430-870 | 0.13 | 100±1% |
| 6 | 1/4'' | 13 | 1.0-2.0 | 145-290 | 3.0-6.0 | 430-870 | 0.15 | 100±1% |
| 8 | 5/16'' | 15 | 1.0-2.0 | 145-290 | 3.0-6.0 | 430-870 | 0.23 | 100±1% |
| 10 | 3/8'' | 17 | 1.0-2.0 | 145-290 | 3.0-6.0 | 430-870 | 0.26 | 100±1% |
| 13 | 1/2'' | 22 | 1.0-2.0 | 145-290 | 3.0-6.0 | 430-870 | 0.36 | 100±1% |
| 16 | 5/8'' | 25 | 1.0-2.0 | 145-290 | 3.0-6.0 | 430-870 | 0.53 | 100±1% |
Made of special PVC mateial and high strength fiber
Supplying water, gas, oil in agriculture and industry, Food grade material can be used for foodstuffs and sanitation insudtry
High quality, low price, higher performance
Working under 100ºC condition, suitable for different high temperature environments. Or -40ºC condition
Anti-uv
PVC With High tensile strength fibers and high quality galvanized spring wire Reinforced.
Durable,anti-UV.Compared with the single spring wire reinforced hose, the pressure is higher 2-4 times.
Used for drawing and conveying water, oil and powder in factory,agriculture.
-10ºC to +65ºC(Good flexible under -40ºC condition )
Supplying water, gas, oil in agriculture and industry, Food grade material can be used for foodstuffs and sanitation insudtry
Working under 100ºC condition, suitable for different high temperature environments. Or -40ºC condition
